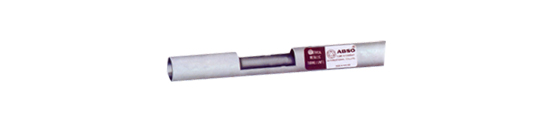

ABSO  EMT  CONDUIT STANDARD SPECIFICATION

Nominal size	Outside Diameter		Wall Thickness		Length		Calculated Weight		Number of Pieces in Std. Packing
	inch	mm	inch	mm	ft	mm	kg/m	kg/p	Per Bundle	Per Lift
1/2	0.706	17.93	0.042	1.07	10	3048	0.445	1.365	10	100
3/4	0.922	23.42	0.049	1.24	10	3048	0.678	2.067	10	100
1	1.163	29.54	0.057	1.45	10	3048	1.004	3.061	7	70
1  1/4	1.510	38.35	0.065	1.65	10	3048	1.493	4.552	5	50
1  1/2	1.740	44.20	0.065	1.65	10	3048	1.731	5.277	5	50
2	2.197	55.80	0.065	1.65	10	3048	2.203	6.716	2	30

Tolerance : Outside Diameter : + - 0.13 mm                       Wall Thickness    : + - 10%                       Length                   : + - 6.4 mm
