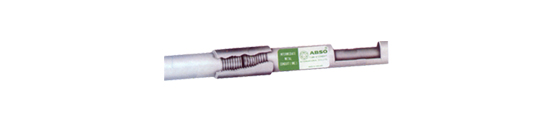

IMC ( Intermediate Metal Conduit)

  Certificated
Click View Detail

Click View Detail

ABSO  IMC  CONDUIT STANDARD SPECIFICATION

Nominal
size
Outside
Diameter
Wall
Thickness
Length without
coupling
Calculated
Weight
Number of Pieces
in Std. Packing
inch
mm
inch
mm
ft
mm
kg/m
kg/p *
kg/p * *
Per Bundle
Per Lift
1/2
0.815
20.7
0.073
1.85
9 - 11  1/4
3029
0.860
2.605
2.655
10
100
3/4
1.029
26.1
0.079
2.0
9 - 11  1/4
3029
1.189
3.601
3.701
10
100
1
1.290
32.8
0.091
2.3
9 - 11  1/2
3023
1.730
5.230
5.380
5
50
1  1/4
1.638
41.6
0.091
2.3
9 - 11  1/2
3023
2.229
6.738
6.918
3
30
1  1/2
1.882
47.8
0.093
2.35
9 - 11
3023
2.634
7.963
8.163
3
30
2
2.360
59.9
0.096
2.45
9 - 11
3023
3.471
10.493
10.943
2
20
2  1/2
2.857
72.6
.0134
304
9 - 10
3010
5.802
17.464
18.364
2
20
3
3.476
88.3
0.134
304
9 - 10
3010
7.118
21.425
22.425
1
10
3  1/2
3.971
100.9
0.134
3.4
9 - 10  1/2
3004
8.175
24.558
25.858
1
10
4
4.466
113.4
0.134
3.4
9 - 10  1/2
3004
9.223
27.706
29.606
1
10

 Tolerance : Outside Diameter :  + - 0.2 mm F ( For 1/2 " - 1 " )
                                                        + - 0.3 mm F ( For 1  1/4 " - 2 " )
                                                        + - 0.4 mm F ( For 2  1/2 " - 4 " )

                      Wall Thickness    :  + - 0.2 mm F ( For 1/2 " - 2 " )
                                                        + - 0.3 mm F ( For 2  1/2 " - 4 " )

                      Length                   :  + - 6.4 mm

 Remarks   : * weight without coupling       * * weight with coupling
