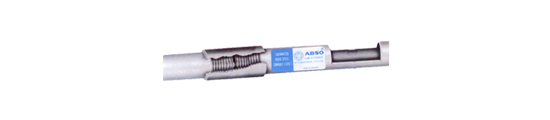

ABSO  RSC CONDUIT STANDARD SPECIFICATION

Trade Size, Inches	Approx. Wt.per 100Ft. (30.5 m) with couplings attached		Nominal Outside Dia. 1		Nominal Wall Thickness 2		Length of Finished Conduit without Coupling 3		Quantity in Primary Bundle		Quantity in Master Bundle		Approx		Volume of Master Bundle
	lb	kg	in	mm	in	mm	ft  and  in	m	ft	m	ft	m	lb	kg	cu  ft	cu  m
1/2	80	36.29	0.840	21.3	0.104	2.6	9'  11  1/4"	3.03	100	30.48	2,500	762	2,000	907	13.9	.3934
3/4	109	49.44	1.050	26.7	0.107	2.7	9'  11  1/4"	3.03	50	15.24	2,000	610	2,180	989	19.9	.5632
1	165	74.84	1.315	33.4	0.125	3.2	9'  11 "	3.02	50	15.24	1,300	396	2,145	973	18.3	.5179
1  1/4	215	87.52	1.660	42.2	0.133	3.4	9'  11 "	3.02	30	9.14	900	274	1,935	878	19.2	.5434
1  1/2	258	117.03	1.900	48.3	0.138	3.5	9'  11 "	3.02	-	-	800	244	2,064	936	22.6	.6395
2	352	159.67	2.375	60.3	0.146	3.7	9'  11 "	3.02	-	-	600	183	2,112	958	24.3	.6877
2  1/2	567	257.19	2.875	73.0	0.193	4.6	9'  10  1/2"	3.01	-	-	400	122	2,268	1,029	17.2	.4868
3	714	323.87	3.500	88.9	0.205	5.2	9'  10  1/2"	3.01	-	-	300	91	2,142	972	27.8	.7867
3  1/2	860	390.10	4.000	101.6	0.215	5.5	9'  10  1/4"	3.00	-	-	250	76	2,150	975	32.5	.9198
4	1,000	453.60	4.500	114.3	0.225	5.7	9'  10  1/4"	3.00	-	-	200	61	2,000	907	29.5	.8349
5	1,320	598.75	5.563	141.3	0.245	6.2	9'  10 "	3.00	-	-	100	31	1,320	599	25.6	.7245
6	1,785	809.68	6.625	168.3	0.266	6.8	9'  10 "	3.00	-	-	100	31	1,785	810	35.6	1,0075

1  Outside Diameter tolerances :  + - 0.015 in ( .38 mm ) for thread sizes 1/2 "  through 2 " .                                                           + - 0.25 in ( 6.35 mm ) for thread sizes 2  1/2 "  through 4 " .                                                           + - 1% for thread sizes 5 "  and 6 " .  2  For information only ; not a spec requirement.  3  Length tolerance : + - 0.25 " ( 6.35 mm ).
