Conduit
Outlet Bodies and Boxes
|
| |
ANSI
/ NEMA FB 1 IP 54 CONDUIT
OUTLET BODIES BOXES
CAST IRON HOT - DIP
GALVANIZED COVER & NEOPRENE GASKET FOR
RIGID , IMC CONDUIT ( NPT )
Application :
GUAE , GUAC , GUAL
, GUAT , GUAX series conduit outlet bodies
are installed within hazardous area conduit
Systems to :
# protect conductors
in threaded RSC , IMC conduit
# act as pull and spilec boxes interconnect
lengths of conduit
# change conduit direction
# provide access to conductors for maintenance
and future system changes
# act as mounting outlets for fixtures (
with appropriate covers )
# act as sealing fitting ( with appropriate
cover )
Features :

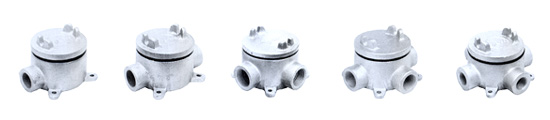

GUAE , GUAC , GUAL
, GUAT , GUAX conduit outlet bodies have
# threaded cover openings
# six different hub arrangements
# taper threaded hubs to provide ground
continuity
# smooth integral hub bushing when pulling
# surface covers furnished with bodies
# flush covers with extension flanges for
covering plaster line , sealing covers ,
dome covers , and fixture hanger covers
are to special order.
Standard Materials
: Bodies -
cast iron , Cover - cast iron
Standard Finishes
: Hot - dip
galvanized and enamel clear coat , Powder
coat : information available on request
Size Ranges
: Hub 1/2 "
to 2 " Size , Cover opening 3 "
- 5 " dia.
Note :
When assembled with
sealing type cover , GUA series outlet bodies
provide adequate sealing for hazardous areas
- Class I ,
Groups C , D , Class II , Groups E , F ,
G ; and Class III , Seals can be made in
either horizontal or vertical positions,
Use Chico " A " sealing compound
only. Conductor splices or connections must
not be made in enclosures
where sealing compound is to be use
per NEC |
|
|
ABSO CONDUIT OUTLET
BODIES AND BOXES SPECIFICATION
|
| |
| ANSI
/ NEMA FB 1 - CONDUIT OUTLET BODIES
AND BOXES IP 54 |
*
Standard
Materials : Cast Iron
*
Standard
Finish :
Hot - Dip galvanized |
|
|
|
|
Catalog
No.
|
Size
( in )
|
Dimensions
( mm. )
|
Weight
( Kg. ) Per 100
|
|
A
|
B
|
C
|
D
|
E
|
A
|
AC
|
AL
|
AT
|
AX
|
|
GUA
HD050
|
1/2 "
|
51.55
|
88.20
|
21.00
|
20.30
|
8.45
|
129.00
|
132.00
|
132.00
|
140.00
|
141.00
|
|
GUA
HD075
|
3/4 "
|
51.55
|
88.20
|
21.00
|
20.30
|
8.45
|
124.00
|
130.00
|
130.00
|
133.00
|
140.00
|
|
GUA
HD100
|
1 "
|
50.60
|
101.55
|
19.15
|
25.00
|
7.55
|
160.00
|
170.00
|
170.00
|
194.00
|
205.00
|
|
GUA
HD125
|
1 1/4
"
|
66.00
|
112.50
|
25.50
|
28.25
|
8.00
|
270.00
|
290.00
|
320.00
|
340.00
|
371.00
|
|
GUA
HD150
|
1 1/2
"
|
76.15
|
124.50
|
26.40
|
32.50
|
8.00
|
262.00
|
280.00
|
309.00
|
330.00
|
360.00
|
|
GUA
HD200
|
2 "
|
102.15
|
148.85
|
26.40
|
47.25
|
7.70
|
413.00
|
491.00
|
491.00
|
540.00
|
620.00
|
|
| |
|
|
|
|
|
