ANSI
/ NEMA FB 1 CIRCULAR
JUNCTION BOXES IP
41
CAST IRON HOT - DIP
GALVANIZED COVER & NEOPRENE GASKET FOR
RIGID , IMC CONDUIT ( NPT )
Application :
CJBE , CJBC , CJBL
, CJBT , CJBX cast outlet boxes are Instaled
in threaded Rigid and IMC conduit
Systems to :
# act as junction
boxes
# act as pull outlet for conductor to be
installed in a conduit system ( with blank
cover ; gasketed or ungasketed )
# accept round base wiring devices and covers
intended for use on 4 " outlet boxes
# act as support for lighting fixtures (
with hub and fixture hanging covers )
# provide access to conductors for maintenance
and future system changes
Features :
# Surface mounting.
Flush mounting can be obtained by nailing
box to concrete form through mounting lug
# Drilled mounting lugs
# Four conduit bosses spaced 90 apart on
sides and one boss on back
# Blank or drilled and tapped bodies
Standard Materials
: Bodies -
cast iron , Cover - cast iron
Standard Finishes
: Hot - dip
galvanized and enamel clear coat , Powder
coat : information available on request
Size Ranges
: Hub 1/2 "
to 3/4 " Size , Cover 4 " dia.
|
|
|

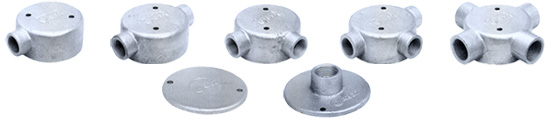

ABSO CIRCULAR JUNCTION
BOXES SPECIFICATION
|
| |
| ANSI
/ NEMA FB 1 - CIRCULAR
JUNCTION BOXES IP
41 |
*
Standard
Materials : Cast Iron
*
Standard
Finish :
Hot - Dip galvanized |
|
|
|
|
Catalog
No.
|
Size
( in )
|
Dimensions
( mm. )
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
|
CJBE
HD050
|
1/2 "
|
48.00
|
99.50
|
17.50
|
20.00
|
6.00
|
35.00
|
22.00
|
|
CJBE
HD075
|
3/4 "
|
48.00
|
99.50
|
17.50
|
20.00
|
6.00
|
35.00
|
22.00
|
|
CJBE
HD100
|
1 "
|
48.00
|
99.50
|
17.50
|
20.00
|
6.00
|
40.00
|
22.00
|
|
CJBC
HD050
|
1/2 "
|
48.00
|
99.50
|
17.50
|
20.00
|
6.00
|
35.00
|
22.00
|
|
CJBC
HD075
|
3/4 "
|
48.00
|
99.50
|
17.50
|
20.00
|
6.00
|
35.00
|
22.00
|
|
CJBC
HD100
|
1 "
|
48.00
|
99.50
|
17.50
|
20.00
|
6.00
|
40.00
|
22.00
|
|
CJBL
HD050
|
1/2 "
|
48.00
|
99.50
|
17.50
|
20.00
|
6.00
|
35.00
|
22.00
|
|
CJBL
HD075
|
3/4 "
|
48.00
|
99.50
|
17.50
|
20.00
|
6.00
|
35.00
|
22.00
|
|
CJBL
HD100
|
1 "
|
48.00
|
99.50
|
17.50
|
20.00
|
6.00
|
40.00
|
22.00
|
|
CJBT
HD050
|
1/2 "
|
48.00
|
99.50
|
17.50
|
20.00
|
6.00
|
35.00
|
22.00
|
|
CJBT
HD075
|
3/4 "
|
48.00
|
99.50
|
17.50
|
20.00
|
6.00
|
35.00
|
22.00
|
|
CJBT
HD100
|
1 "
|
48.00
|
99.50
|
17.50
|
20.00
|
6.00
|
40.00
|
22.00
|
|
CJBX
HD050
|
1/2 "
|
48.00
|
99.50
|
17.50
|
20.00
|
6.00
|
35.00
|
22.00
|
|
CJBX
HD075
|
3/4 "
|
48.00
|
99.50
|
17.50
|
20.00
|
6.00
|
35.00
|
22.00
|
|
CJBX
HD100
|
1 "
|
48.00
|
99.50
|
17.50
|
20.00
|
6.00
|
40.00
|
22.00
|
|
| |
|
|
|
|
| ANSI
/ NEMA FB 1 - CIRCULAR
JUNCTION BOXES IP
41 |
Cast
Iron Hot - Dip Galvanized
Blank Cover & Neoprene Gasket
|
|
|
|
ANSI
/ NEMA FB 1 - CIRCULAR
JUNCTION BOXES
FOR SUPPORT LIGHTING ( PENDENT ) |
Cast
Iron Hot - Dip Galvanized
Hub Cover & Neoprene Gasket For Rigid
, IMC Conduit ( NPT ) IP 41 |
|
|
|
|
