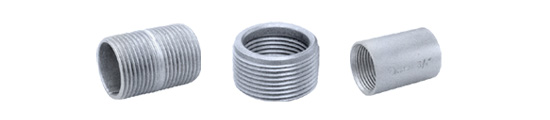

Coupling and Bushing

  Certificated
Click View Detail

Click view detail

ABSO   CLOSE NIPPLE   SPECIFICATION


CLOSE NIPPLE
* Standard Materials : Hot rolled sheet steet strip
* Standard Finish       : Finish Zincelectroplated & Zinc Plant

Click View Detail
Catalog No.
Size ( in )
Dimensions
( mm. ) L
Weight ( Kg. )
Per 100
CN050
1/2
29.00
1.70
CN075
3/4
37.85
3.50
CN100
1
47.75
5.20
CN125
1 1/4
43.00
5.50
CN150
1 1/2
48.25
8.60
CN200
2
52.70
14.90
CN250
2 1/2
61.50
25.50
CN300
3
70.00
44.30
CN350
3 1/2
75.40
53.00
CN400
4
100.00
65.50




ABSO   REDUCING BUSHINGS ( MALE / FEMALE )   SPECIFICATION


REDUCING BUSHINGS ( MALE / FEMALE )
* Standard Materials : Cast Iron
* Standard Finish       : Electro galvanized

Click View Detail
Catalog No.
Size ( in )
Dimensions ( mm. ) L
RB075050
3/4*1/2
20.60
RB100075
1*3/4
19.60
RB100050
1*1/2
19.60
RB125050
1 1/4*1/2
25.20
RB125075
1 1/4*3/4
25.20
RB125100
1 1/4*1
24.70
RB150050
1 1/2*1/2
24.40
RB150075
1 1/2*3/4
24.40
RB150100
1 1/2*1
24.40
RB150125
1 1/2*1 1/4
25.30
RB200075
2*3/4
28.00
RB200100
2*1
28.50
RB200125
2*1 1/4
27.85
RB200150
2*1 1/2
28.15
RB250125
2 1/2*1 1/4
31.00
RB250150
2 1/2*1 1/2
31.25
RB250200
2 1/2*2
46.90
RB300125
3*1 1/4
31.00
RB300150
3*1 1/2
30.75
RB300200
3*2
30.75
RB300250
3*2 1/2
30.75
RB350200
3 1/2*2
36.85
RB350250
3 1/2*2 1/2
36.70
RB350300
3 1/2*3
37.15
RB400200
4*2
36.00
RB400250
4*2 1/2
36.90
RB400300
4*3
36.85
RB400350
4*3 1/2
38.00




ABSO   COUPLING R.G.   SPECIFICATION


COUPLING R.G.
* Standard Materials : Hot rolled steet strip
* Standard Finish       : Hot - dip galvanized
* ET    : Electro galvanized.
* HD    : Hot - dip galvanized

Click View Detail
Catalog No.
Size ( in )
Dimensions ( mm. )
Weight ( Kg. )
Per 100
A
B
C
CPR ET / HD050
1/2
40.60
26.25
19.30
5.40
CPR ET / HD075
3/4
42.25
31.50
24.60
7.30
CPR ET / HD100
1
49.50
38.00
30.80
12.50
CPR ET / HD125
1  1/4
50.25
47.00
39.50
14.00
CPR ET / HD150
1  1/2
53.30
54.70
45.60
23.60
CPR ET / HD200
2
55.50
67.50
57.60
33.50
CPR ET / HD250
2  1/2
83.00
81.50
69.10
95.00
CPR ET / HD300
3
84.15
98.30
84.90
98.50
CPR ET / HD350
3  1/2
87.00
113.75
97.50
136.00
CPR ET / HD400
4
87.00
123.40
110.10
154.00
CPR ET / HD500
5
97.25
157.70
136.90
225.00
CPR ET / HD600
6
103.60
182.90
163.70
347.00
